We Hongda America Corp provide equipment design & customization services.

Our products can provide the ASME/CE/CRN/AS certification.

Measurements:

Standard Features:

Interior Construction: 304 or 316 Stainless Steel, with #4 finish.

Exterior Construction: 304 Stainless Steel, with #4 or #28 finish.

Heat Transfer Surface: No heating or side and bottom stainless steel dimple jacket rated for 75 psi.

Insulation: No insulation or polyurethane 2” thick.

Vertical Agitation: Single agitator, bottom liquidation.

Motor: SEW or Nord.

Tank Top: Inverted cone with 15 degree slope or hemispherical head with double open hinged lids, C/P cleaning.

Tank Bottom: Conical with 15 or 30 degree slope and center outlet.

Inlet/Outlet Ports: Sanitary clamp connections.

Temperature lndicating: 1/2” FNPT and 11/4” UNEF temperature sensor interface.

Legs: Adjustable stainless steel legs.

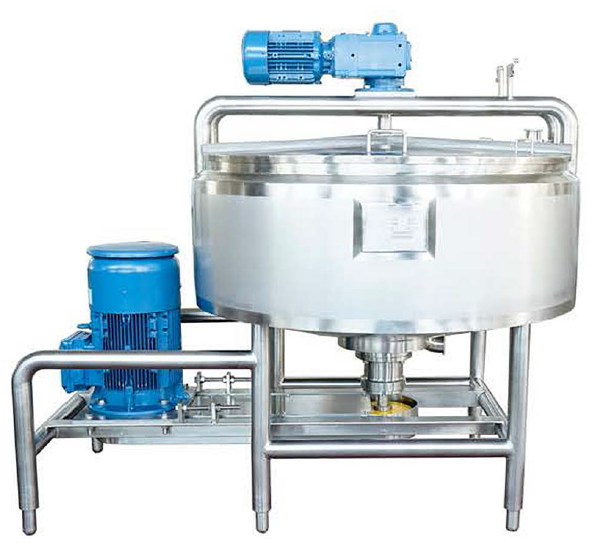

Application: Stainless steel jacketed liquefier mainly used for food and dairy, size range from from 50 to 300 gallons, square and circular is optional.
